JD 610B, 610C Backhoe Loaders
Model: JD 610B & JD 610C (TM1446 & TM1447)
Type: Backhoe Loader
Language: English
Format: PDF
No of Pages: 548 – Operation and Test
No of Pages: 884 – Repair

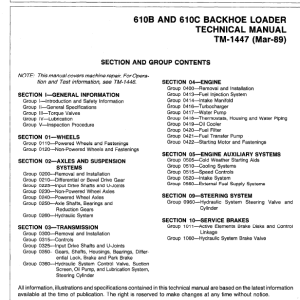

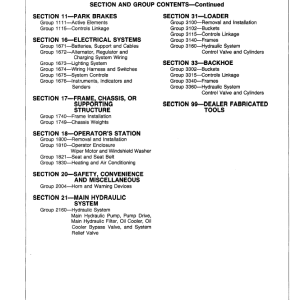

See pictures for the table of content.
Technical (Repair) Manual or Service Manual – for actual service
The JD 610B, 610C Backhoe Loader Service Manual give you both the general background and technical details of shop service. Fundamentals of Service Manuals cover basic theory of operation, fundamentals of troubleshooting, general maintenance, and basic types of failures and their causes.
This Service Manual was planned and written in such a way it is made easy to repair your equipment. Refer to it when you need to know correct service procedures or specifications. Using the Service Manual as a guide will reduce error and costly delay. It will also assure you the best in finished service work.
JD 610B, 610C Backhoe Loaders TM1446 Sections:
I – GENERAL INFORMATION
9005 – OPERATIONAL CHECKOUT PROCEDURE
9010 – ENGINE
9015 – ELECTRICAL SYSTEM (610B)
9015 – ELECTRICAL SYSTEM (610C)
9020 – POWER TRAIN
25 – HYDRAULIC SYSTEM
99 – DEALER FABRICATED TOOLS
JD 610B, 610C Backhoe Loaders TM1447 Sections:
- I – GENERAL INFORMATION
- 01 – WHEELS
- 02 – AXLES AND SUSPENSION SYSTEMS
- 03 – TRANSMISSION
- 04 – ENGINE
- 05 – ENGINE AUXILIARY SYSTEMS
- 09 – STEERING SYSTEM
- 10 – SERVICE BRAKES
- 11 – PARK BRAKES
- 16 – ELECTRICAL SYSTEMS
- 17 – FRAME, CHASSIS, OR SUPPORTING STRUCTURE
- 18 – OPERATOR’S STATION
- 20 – SAFETY, CONVENIENCE AND MISCELLANEOUS
- 21 – MAIN HYDRAULIC SYSTEM
- 31 – LOADER
- 33 – BACKHOE
- 99 – DEALER FABRICATED TOOLS
If you are interested in any other models of JD Service Manual click here.
