John Deere 450K, 550K
John Deere 450K, 550K, 650K Crawler Dozer Service Manual
(TM14162x19 and TM14163x19)
Language: English
Format: PDF
Publication: TM14162x19 and TM14163x19
Crawler Dozer Model Applicable Serial no:
450K (PIN: 1T0450KX_ _F304771—)
550K (PIN: 1T0550KK_ _F305398—)
650K (PIN: 1T0650KK_ _F305399—)

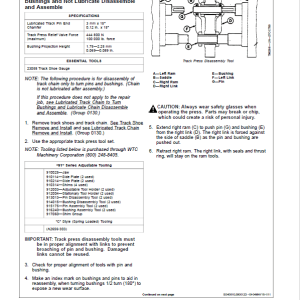

- John Deere 450K, 550K, 650K Dozer Repair Service Manual – 486 Pages

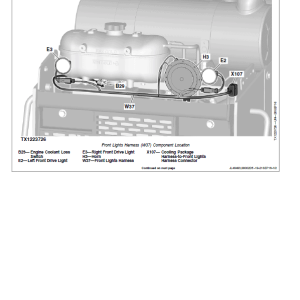

- Operation and Test Service Manual – 1206 Pages
Table of Content of the John Deere 450K, 550K, 650K
Repair Manual
Section 00—General Information
Group 0001—Safety
Group 0003—Torque Values
Section 01—Tracks
Group 0130—Track System
Section 02—Axles and Suspension Systems
Group 0201—Drive Axle Housing and Support
Group 0250—Axle Shaft, Bearings, and Reduction Gears
Section 03—Transmission
Group 0300—Removal and Installation
Group 0315—Controls Linkage
0325—Input Drive Shafts and U-Joints
Group 0360—Hydrostatic System
Section 04—Engine
Group 0400—Removal and Installation
Section 05—Engine Auxiliary System
Group 0505—Cold Weather Starting Aids
Group 0510—Cooling Systems
0520—Intake System
0530—External Exhaust Systems
0560—External Fuel Supply Systems
Section 11—Park Brake
Group 1100—Removal and Installation
Group 1115—Controls Linkage
1160—Hydraulic System
Section 15—Equipment Attaching
Group 1511—Drawbar
Section 16—Electrical System
Group 1600—Removal and Installation
Section 17—Frame, Chassis, or Supporting Structure
Group 1740—Frame Installation
Group 1746—Frame Bottom Guards
Group 1749—Chassis Weights
Section 18—Operator’s Station
Group 1800—Removal and Installation
Group 1810—Operator Enclosure
Group 1821—Seat and Seat Belt
Group 1830—Heating and Air Conditioning
Section 19—Sheet Metal and Styling
Group 1910—Hood or Engine Enclosure
Group 1913—Miscellaneous Shields
Group 1921—Grille and Grille Housing
Section 20—Safety, Convenience, and Miscellaneous
Group 2004—Horn and Warning Devices
Section 21—Main Hydraulic System
Group 2160—Hydraulic System
Section 32—Bulldozer
Group 3201—Blades
Group 3215—Control Linkage
Group 3240—Frames
Group 3260—Hydraulic System
Section 42—Ground Conditioning Tool
Group 4200—Ripper
Group 4201—Blades, Teeth, and Shanks
Group 4260—Hydraulic System
Section 99—Dealer Fabricated Tools
Group 9900—Dealer Fabricated Tools
Operation and Test Manual
Section 9000—General Information
Group 01—Safety
Section 9001—Diagnostic Trouble Codes (DTCs)
Group 01—General Information
Group 10—Engine Control Unit (ECU) Diagnostic Trouble Codes
20—Standard Display Monitor (SDM) Diagnostic Trouble Codes
Group 30—Sealed Switch Module (SSM) Diagnostic Trouble Codes
Group 40—Transmission Control Unit (TCU) Diagnostic Trouble Codes
50—Vehicle Control Unit (VCU) Diagnostic Trouble Codes
Group 60—Hydraulic Valve Controller (HVC) Diagnostic Trouble Codes
Group 70—Blade Control Joystick (BCJ) Diagnostic Trouble Codes
80—Vehicle Control Unit 2 (VC2) Diagnostic Trouble Codes
Section 9005—Operational Checkout
Procedure
Group 10—Operational Checkout Procedure
Section 9010—Engine
Group 05—Theory of Operation
Group 10—System Diagrams
15—Diagnostic Information
20—Adjustments
25—Tests
Section 9015—Electrical System
Group 05—Theory of Operation
Group 10—System Diagrams
Group 11—Topcon® Grade Control Operation (Factory Installation)
12—SmartGrade™ Operation
13—Slope Control Operation
Group 15—Diagnostic Information
16—Monitor Operation
Group 17—Diagnostic Test Box
20—Adjustments
25—Tests
Section 9025—Hydraulic System
Group 05—Theory of Operation
Group 10—System Diagrams
Group 15—Diagnostic Information
20—Adjustments
Group 25—Tests
Section 9026—Hydrostatic System
Group 05—Theory of Operation
Group 10—System Diagrams
Group 15—Diagnostic Information
Group 25—Tests
Section 9031—Heating and Air Conditioning
Group 05—Theory of Operation
Group 10—System Diagrams
Group 15—Diagnostic Information
Group 25—Tests
Section 9900—Dealer Fabricated Tools
Group 99—Dealer Fabricated Tools
This manual is written for an experienced technician and Owners. Essential tools required in performing certain service work are identified in this manual and are recommended for use.
Read the safety messages in the introduction of this manual and the cautions presented throughout the text of the manual.
The John Deere 450K, 550K, 650K Dozer Technical manuals are divided in two parts: repair and operation and tests. Repair sections tell how to repair the components. Operation and tests sections help you identify the majority of routine failures quickly.
Information is organized in groups for the various components requiring service instruction. At the beginning of each group are summary listings of all applicable essential tools, service equipment and tools, other materials needed to do the job, service parts kits, specifications, wear tolerances, and torque values.
Technical Manuals are concise guides for specific machines. They are on-the-job guides containing only the vital information needed for diagnosis, analysis, testing, and repair.
