Timberjack 870B Single Grip Harvester Service Repair Manual

Timberjack 870B Manual Table of Content

1 Introduction
2 Guarantee
3 Safety instructions
4 Instruments and controls
5 Operating instructions
6 Lubrication and maintenance
7 Hydraulic system

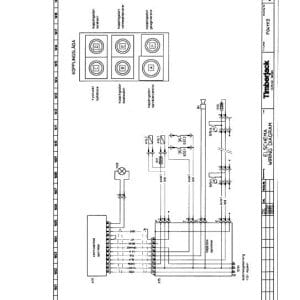

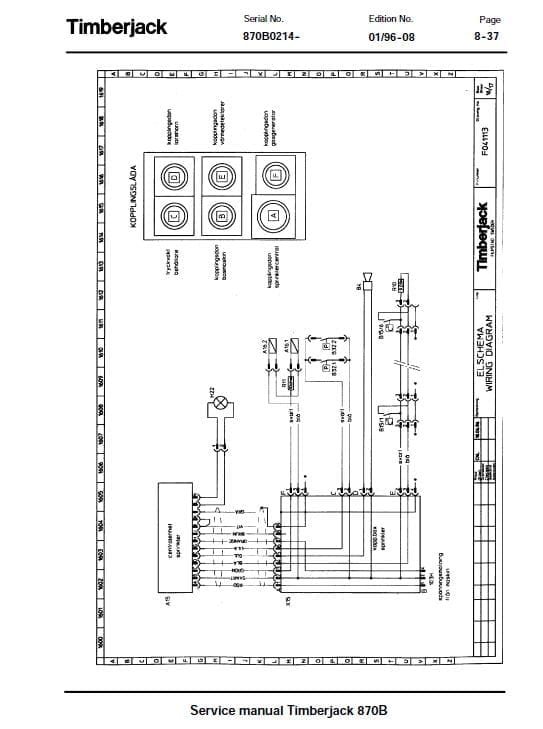

8 Electrical system
9 Power transmission and brakes
10.1 Fire fighting equipment
10.2 Air conditioner
11 Technical data
20 Engine and cab heaters

Timberjack 870B Harvester Service Repair Manual

To assist the operator in becoming familiar with the many features of this machine, and thereby become proficient in the operation and periodic maintenance procedures, this manual is provided with detailed operating and service instructions as well as safety information and equipment data. Throughout this manual, references are made to the front, rear, left, and right side of the machine. Consider the right side, left side, front, and rear, of the Forwarder from a seated position in the operator’s seat with the engine being at the front.

Where applicable throughout the text, “Safety Alert” symbols have been used to indicate important safety measures. Read carefully, understand, and follow these instructions to prevent hazardous situations that could lead to risk of personal injury. The instructions and procedures in this manual cover Forwarders with the most commonly used options; therefore pictorial presentation in some areas may vary slightly from the actual machine.

This variation, however, does not have any impact on the accuracy of the written information. The information contained in this manual is current at the time of publication; however, continuing product improvement may result in changes to the machine which are not covered. Should information regarding such changes or further information on the machine be required, please contact your Timberjack dealer .
