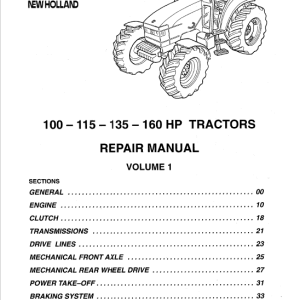

New Holland 100 HP, 115 HP, 135 HP, 160 HP Tractor Service Manual
Safety First: New holland lb 115 b Tractor Parts Manual
- Safety Equipment: Always wear appropriate safety gear, including gloves, eye protection, and sturdy footwear, when working on or around the tractor.
- Lockout/Tagout: Follow proper lockout/tagout procedures to prevent accidental startup during repairs.
- Seek Professional Assistance: If you are unsure about any repair procedure, consult a qualified technician or dealer.
Table of Content (Repair Manual)
General
Engine
Clutch
Transmission
Drive Lines
Mechanical Front Axle
Mechanical Rear-Wheel Drive
Power Take off
Braking System
The following pages are the collation of the contents pages from each section and chapter of the Tractors 100 HP, 115 HP, 135 HP, 160 HP Repair manual.
The Manual Introduction
This service manual provides the technical information needed to properly service the 100 HP, 115 HP, 135 HP, 160 HP transmission, Axle and other parts of the Tractor. Use this manual with the operator’s manual for complete operation, adjustment, and maintenance information. Read this manual carefully before starting, using, carrying out refueling or performing any other type of operation on the tractor.
. Essential tools required in performing certain service work are identified in this manual.
Information in this manual is organized in sections and subdivided into groups.
Section 01: Covers the safety measures to be followed while repairing the engine; engine identification features, engine emission details, and engine application details. Also covers information about fuels, lubricants, and coolants.
Section 02: Covers the repair and adjustment procedures.
Section 03: Explains the systems theory of operation.
Section 04: Covers diagnostics and provides troubleshooting procedures to find problems.
Section 05: Lists all applicable service equipment, tool, and other materials needed to complete adjustment and repair procedures.
Section 06: Contains electrical schematics, wiring harness information.
Section 07: Provides specifications, wear tolerances, torque values.
This manual contains SI Metric units of measure followed immediately by the U.S. Customary units of measure.
Most hardware on these engines are metric sized. Read each block of material completely before performing service to check for differences in procedures or specifications. Follow only the procedures that apply to the component you are working on. Component Technical Manuals (CTM): Contain information to be used as service guides for specific
components. CTMs are written as stand-alone manuals covering multiple machine applications.
New Holland 100 HP, 115 HP, 135 HP, 160 HP Tractor Service Manual
