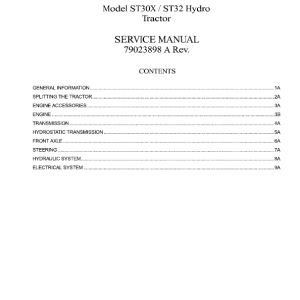

Service Manual for: AGCO Tractor
Format: PDF
Book Number: 79021617 & 79023898
English
Issued August 2005
AGCO ST30X, ST32 Tractor Manual (Prior to “L” S/N) and Hydro
AGCO ST30X, ST32 Tractor Manual (After to “L” S/N)
Manual TABLE OF CONTENTS
GENERAL INFORMATION …. 1A
SPLITIING THE TRACTOR ….. 2A
ENGINE ACCESSORIES … 3A
ENGINE …. 38
TRA NSMISSION ….. 4A
HYDROSTATIC TRA NSMISSION ….. SA
FRONT AXLE …. 6A
STEERING ….. 7A
HYDRAULIC SYSTEM … 8A
ELECTRICA L SYSTEM … 9A
ST30X, ST32 Manual Extract – REMOVAL OF POWER STEERING UNIT
Remove the floor mat (LH and RH).
Remove four bolts and remove the center cover.
Remove four screws and remove column cover.
Remove six screws and disconnect couplers for related wiring harness. And remove the rear cover.
Remove two screws and loosen two bolts. Disconnect the coupler for meter panel and disconnect tachometer cable.
Remove front cover.
Remove throttle cable.
FIG. 58: Disconnect four hydraulic hoses from Orbit roll power steering unit (1).
Remove four bolts (2) and remove steering post with Orbit roll power steering unit.
Remove bolts (3) and remove the power steering unit from steering post.
