Manual for: AGCO Tractor
Format: PDF
Book Number: 79017546 & 79021878
English
AGCO ST45 Compact Tractor Service Manual
AGCO ST45 Hydro Tractor Service Manual

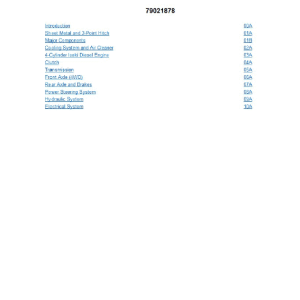

Manual TABLE OF CONTENTS
Introduction
Sheet metal and 3 Point hitch
Major Components
Cooling System Air Cleaner
4 Cylinder Iseki Dies Engine Manual (Included)
Clutch
Transmission
Front Axle (4WD)
Rear Axle and Brakes
Power Steering System
Hydraulic System
Electrical System
ST45 Manual Extract
HOOD SIDE PANELS
Remove and Installation
To access radiator, battery and engine components, right and left hood side panels can be easily removed.
To remove; turn locking lever, 1, downward to unlock. Pull outward on bottom edge, at points indicated and then lift side panel upward to disengage and remove.
Reinstall in reverse order making sure top edge of side panel engages correctly. Push inward on bottom edge and turn lever, 1, rearward to lock.
FRONT GRILL
Remove and Installation
To permit battery removal and power steering filter servicing, front grille should be removed.
To remove, turn locks, 2, one-quarter turn counterclockwise.
Tip top of grille outward and disconnect headlight wiring couplers, 3. Lift grille upward to disengage lower hooks and remove from Tractor.
Reinstall in reverse order making sure lower hooks engage on pins. It will be necessary to push inward on locks, 2, and then turn one-quarter turn clockwise to secure.
HOOD
Remove and Installation
To remove hood proceed as follows: Remove hood side panels.
Remove front grille.
Remove fuse box and set it back in console area.
Disconnect wiring attached to hood.
Loosen clamp and remove exhaust pipe, (if vertical exhaust is used)
Remove bolts holding hood in position and remove hood.
Reverse procedures to install hood.
