Manual for: AGCO Tractor
Format: PDF
Book Number: 79023088 & 79021618 & 79019398
English

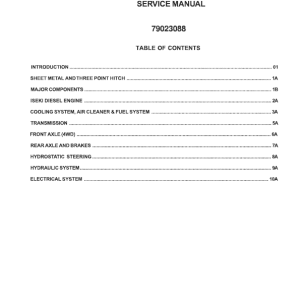

AGCO ST35, ST40 Tractor Service Manual (effective “L” S/N)
AGCO ST35, ST40 Tractor Service Manual (Prior “L” S/N)
Hydro Version
Engine Manual
Manual TABLE OF CONTENTS
INTRODUCTION … 01
SHEET METAL …… 01A
MAJOR COMPONENTS …. 01 B
ENGINE …02A
COOLING SYSTEM AND AIR CLEANER …..03A
CLUTCH ….. 04A
TRANSMISSION ….05A
POWER SHUTTLE … 05B
HYDROSTAT … 05C
FRONT AXLE (2 WD) …. 06A
FRONT AXLE (4WD) …06B
REAR AXLE AND BRAKES …. 07A
POWER ASSIST STEERING …08A
HYDRAULIC SYSTEM …09A
ELECTRICAL SYSTEM …. 10A
ST35, ST40 Manual Extract – FORWARD/REVERSE SHIFT
Removal and Installation FIG. 5A-76: Linkage is shown.
1. Shift Fork
2. Shift Rail
3. Fork
4. Lever
5. Cable Assembly
6. Shift Cover
7. Oil Seal
8. Arm
9. Gasket
Disassembly
· Split Tractor between front transmission and engine.
· Remove bolts holding shift housing and remove housing.
· Remove wires holding shift rail retaining bolts and remove rail with fork.
· When removing shift rails be careful that detent balls do not fly out and become lost.
Reassembly
· Reverse procedures to install shift linkage with the following additional information.
· Lubricate grooves in shift rails
