John Deere PowerTech 8.1L Diesel Engines Level 9 Electronic Fuel System With Denso Rail Repair Manual
This manual (CTM255) is written for an experienced technician. Essential tools required in performing certain service work are identified in this manual and are recommended for use.
Model: PowerTech 8.1L Diesel Engines Level 9 Electronic Fuel System With Denso Rail
Type: Engines
Language: English
Format: PDF
Publication CTM255
- John Deere PowerTech 8.1L Diesel Engines Level 9 Electronic Fuel System With Denso Rail Repair Manual – 670 Pages
PowerTech 8.1L Diesel Engines Level 9 Electronic Fuel System With Denso Rail Manual Table of Content
Section 01—General
Group 000—Safety
Group 001—Engine Identification
Group 002—Fuels, Lubricants, and Coolant
Section 02—Repair and Adjustments
Group 090—Electronic Fuel System Repair and Adjustments
Group 110—Electronic Engine Control Repair and Adjustment
Section 03—Theory Of Operation
Group 130—Electronic Fuel System Operation
Group 140—Electronic Control System Operation
Section 04—Diagnostics
Group 150—Observable Diagnostics and Tests
Group 160—Trouble Code Diagnostics and Tests
Section 05—Tools
Group 170—Electronic Fuel/Control System Repair Tools and Other Materials
Group 180—Diagnostic Service Tools
Section 06—Specifications
Group 200—Repair Specifications
Group 210—Diagnostic Specifications
John Deere PowerTech 8.1L Diesel Engines Level 9 Electronic Fuel System With Denso Rail Repair Manual
This manual (CTM255) is written for an experienced technician. Essential tools required in performing certain service work are identified in this manual and are recommended for use.

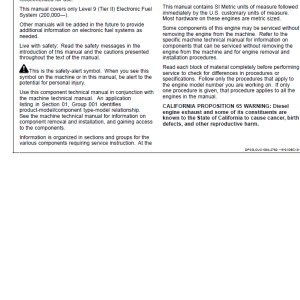

This manual covers only Level 9 (Tier II) Electronic Fuel System (200,000—).
Other manuals will be added in the future to provide additional information on electronic fuel systems as needed.
Use this component technical manual in conjunction with the machine technical manual. An application
listing in Section 01, Group 001 identifies
product-model/component type-model relationship.
See the machine technical manual for information on component removal and installation, and gaining access to the components.
Information is organized in sections and groups for the various components requiring service instruction. At the beginning of each group are summaries of the up coming group.
Before beginning repair on an engine, clean the engine.
This manual contains SI Metric units of measure followed immediately by the U.S. customary units of measure.
Most hardware on these engines are metric sized.
Some components of this engine may be serviced without removing the engine from the machine. Refer to the specific machine technical manual for information on components that can be serviced without removing the engine from the machine and for engine removal and installation procedures.
