Manual for: AGCO Loader
Format: PDF
Book Number: 79034729 & 554806D1A
English

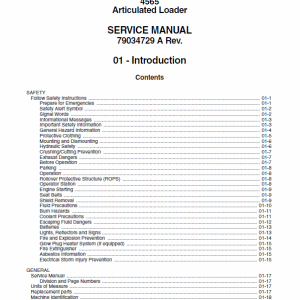

Willmar 4565 Wrangler Service Manual
Parts Catalog
Manual TABLE OF CONTENTS
Introduction
Engine
Frame
Steering System
Hydraulic System
Electrical System
Cab
HVAC
Accessories
Attachments
Willmar 4565 Manual Extract
Hydraulic Oil Reservoir
Hydraulic oil reservoir is located on the left-hand side of the chassis. Capacity of tank is 57.7 liters (15.25 gal). Tank contains return oil filter, two suction strainers, breather cap and drain plug. There are two sections. Oil is drawn from front section of tank and is returned to rear section of tank. Holes in divider allow oil to flow from return side to suction side.
Oil is drawn from gear pump suction screen and flows to gear pump. Oil not used for steering is routed out Excess Flow (EF)-port to three-spool control valve. Oil returning from valve is routed through oil cooler and then back to rear section of oil reservoir.
